Magnutom-5000
- Intuitive icon-based programming
- Simulator function
- AxioWash automatic cleaning
- Automatic X and Rotary tables
- Rotary movement
As the only cut-off machine in its field, Magnutom-5000 can map out the most complex of section sequences and simulate all individual sections for you to validate. Magnutom-5000 is the largest machine in its field with four automated axes, as well as a rotary table, which enables a large variety of sectioning possibilities. The spacious 1000 mm wide cutting chamber and sliding front door make it possible to use a forklift or crane to load heavy samples.
Get the cut right the first time with simulator
As the only cut-off machine in its field, Magnutom-5000 can map out the most complex of section sequences and then, with the patent pending simulator function, simulate all individual sections for you to correct or validate before sectioning. No time or materials are wasted on trial sections.
All movements are easily operated with the joystick. By integrating the movement of the joystick, the laser light and the software features, Magnutom-5000 presents a unique user interface. During programing, the joystick is moved to the sectioning points and the exact position is logged into the sequence. The operator only needs to decide whether to move or cut.
Automated rotary table supersedes re-clamping
A section is only as accurate as the quality of the clamping. The Magnutom-5000 is the largest machine in its field with four automated axes, including a rotary table. Imagine how much time can be saved with no re-clamping.
Sectioning in up to 4 axes in fully automatic sequences makes it possible to carry out a series of parallel or angled sections of the same or varying thicknesses. Magnutom-5000 has safe move settings, which prevent damage and cut-off wheel breakages during movement.
Save consumables with automatic rpm-compensation
Magnutom-5000 adapts its speed automatically via rpm-optimization as the cut-off wheel wears down. This means 31% more sections per cut-off wheel can be produced in certain situations by using Struers’ specialized consumables.
Struers’ cut-off wheels have a composition which partially compensates for wear, and on the Magnutom-5000 XYZ and XYZR models, built-in sensors will monitor the wear of the cut-off wheel. The information feeds into algorithms on the machine, and by increasing the speed it insures increased yield of the cut-off wheel.
Key features that save you time and let you cut to the point
-
Spindle lock makes it faster and easier to change cut-off wheels
The spindle lock makes it faster and easier to change cut-off wheels. The spindle lock does not depend on a certain position of the cut-off wheel. By the push of a button, the operator locks the position of the spindle in any position.
Spindle lock makes it faster and easier to change cut-off wheels
-
User-friendly joystick enables fast and easy programming
Discover fast and easy programming with the user-friendly joystick. All movements are easily controlled with the joystick. Simply move the cut-off wheel in position and make the cut. When more positions are combined into a cutting sequence, the positions are easily captured and logged in programming by the touch of a button. The intuitive operation of the machine only requires basic training.
User-friendly joystick enables fast and easy programming
-
Laser light points out the precise position for your section
Laser light points out the precise position for your section. Clamping and positioning of the workpiece can be tedious and time-demanding. The laser is a greatly helpful tool and used in combination with the joystick it makes positioning much more convenient. The laser indicates the left edge of the cut-off wheel. In the simulator function, the laser light will indicate where the cuts are positioned before even making one cut.
Laser light points out the precise position for your section
-
Faster programming with icon-based user interface
With the intuitive, icon-based user interface, you will get programming done in no time and reproduce the same accuracy in hundreds or even thousands of sections.
Faster programming with icon-based user interface
-
Three table variants enable clamping for any need
Magnutom-5000 comes with three table variants that enable clamping for any need – automatic XY-table with rotary movement, automatic XY-table with X-movement and fixed table.
Three table variants enable clamping for any need
-
Hinge side door that opens up completely for optimal access
The hinged sliding front door that opens wide and the spacious 1000 mm wide cutting chamber gives you unrestricted access and make it possible to use a forklift or crane to load heavy samples.
Hinge side door that opens up completely for optimal access
-
Cut-off wheel monitoring helps you save consumables
Magnutom-5000 adapts speed automatically via rpm-optimization as the cut-off wheel wears down. This means 31% more sections per cut-off wheel in certain situations by using Struers’ specialized consumables.
Cut-off wheel monitoring helps you save consumables
-
AxioWash automatic cleaning with Struers’ patented cleaning program
AxioWash is Struers’ patented cleaning program, which can be used every day to keep the machine in optimal working condition.
AxioWash automatic cleaning with Struers’ patented cleaning program
-
Powerful water pistol for easy and effective manual cleaning of the cutting chamber
Water pistol featuring an adjustable water flow mechanism for efficient and easy manual cleaning, complemented by an extended-length hose for full access to all areas within the cutting chamber.
Powerful water pistol for easy and effective manual cleaning of the cutting chamber
-
Flexible and easy-to-use clamping tools for fast and stable fixation of your workpiece
A wide array of versatile, easy-to-use clamping tools accommodates both regular and irregular workpieces of any size, ensuring adequate stability and easy repeatability.
Flexible and easy-to-use clamping tools for fast and stable fixation of your workpiece
Facts
Model types

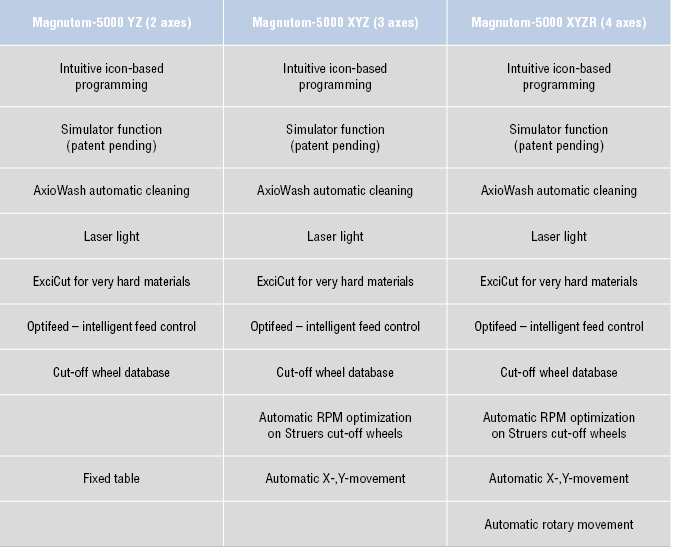

Magnutom-5000 is available in three versions. See specifications for details.
Magnutom-5000 YZ (2 axes)
With key features such as intuitive icon-based programming, simulator function, AxioWash automatic cleaning, laser light and fixed table.
Magnutom-5000 XYZ (3 axes)
With key features such as intuitive icon-based programming, simulator function, AxioWash automatic cleaning, laser light, automatic X-table, automatic Y-movement, X-movement and automatic RPM optimization on Struers cut-off wheels.
Magnutom-5000 XYZR (4 axes)
With key features such as intuitive icon-based programming, simulator function, AxioWash automatic cleaning, laser light, automatic X-table, automatic Y-movement, rotary movement and automatic RPM optimization on Struers cut-off wheels.
With key features such as intuitive icon-based programming, simulator function, AxioWash automatic cleaning, laser light and fixed table.
Magnutom-5000 XYZ (3 axes)
With key features such as intuitive icon-based programming, simulator function, AxioWash automatic cleaning, laser light, automatic X-table, automatic Y-movement, X-movement and automatic RPM optimization on Struers cut-off wheels.
Magnutom-5000 XYZR (4 axes)
With key features such as intuitive icon-based programming, simulator function, AxioWash automatic cleaning, laser light, automatic X-table, automatic Y-movement, rotary movement and automatic RPM optimization on Struers cut-off wheels.
Struers’ equipment is in conformity with the provisions of the applicable international directives and their appurtenant standards.
Struers’ products are subject to constant product development. Therefore, we reserve the right to introduce changes to our products without notice.
Get your Technical Data Sheet for Magnutom-5000
A short and clear description that gives you an immediate overview to help you make the best choice of equipment.
• Capacity and performance specifications
• Dimensions and weight
• Electrical data
• Noice levels
• Safety
Get your brochure for Magnutom-5000
Get the full introduction, descriptive visuals, and key feature descriptions to help you qualify your choice of equipment.
• Explanatory photos
• Key feature descriptions
• Technical Data Sheet
